High Performance Gear Shift Control Cable Assembly with Carbon Steel / Stainless Steel Inner Cable and Up To 1500N Operating Load

100 parça/parça
MOQ
Anlaşılabilir
fiyat
High Performance Gear Shift Control Cable Assembly with Carbon Steel / Stainless Steel Inner Cable and Up To 1500N Operating Load
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
isim: Yüksek Performanslı Vites Değiştirme Kontrol Kablosu Düzeneği –Phidix Hareket Kontrolü Üreticisi
Marka: PHIDIX
Sertifika: IATF16949
İç kablo malzemesi: Karbon Çelik / Paslanmaz Çelik
Dış gövde malzemesi: PVC, Polimer veya Çelik Spiral Boru
Kablo çapı: 2mm–10mm (Özelleştirilebilir)
Uzunluk aralığı: 0,5m–10m (Özel Uzunluklar Mevcuttur)
Çalışma Yükü: 1500N'ye kadar (Yapılandırmaya Bağlı Olarak)
Minimum bükülme yarıçapı: 100mm–300mm
Çalışma Sıcaklığı: -40℃ ila +150℃
Uç bağlantı parçaları: Çatal, U-şekilli Çatal, Rotil, Dişli Saplama veya Özel
Vurgulamak:

High Performance Gear Shift Control Cable Assembly

,

Carbon Steel / Stainless Steel Inner Cable Control Cable Assembly

,

Up To 1500N Operating Load Mechanical Motion Transmission Cable
Temel bilgiler
Menşe yeri: ÇİN
Marka adı: PHIDIX
Sertifika: IATF16949
Model numarası: Kontrol Kablosu Montajı
Ödeme & teslimat koşulları
Ambalaj bilgileri: Karton veya Tahta Sandık
Teslim süresi: 7-40 iş günü
Ödeme koşulları: L/C,D/A,D/P,T/T
Yetenek temini: 888 Adet/Adet Ayda
Ürün Açıklaması
High Performance Gear Shift Control Cable Assembly
Phidix Motion Control Manufacturer
The gear shift control cable is designed to transmit precise mechanical motion between the gear lever and the transmission system. Manufactured by PHIDIX, this cable assembly features a flexible stainless steel core and a durable outer sheath for smooth operation and long service life. It ensures accurate gear engagement, reliable performance, and reduced maintenance in both manual and automatic transmission applications.
Applications
  • Manual and automatic transmission systems
  • Construction and agricultural machinery
  • Marine engine and throttle systems
  • Industrial vehicles and forklifts
  • Control systems for heavy-duty equipment
  • Off-road and utility vehicles
Features
  • High Flexibility: Smooth and consistent motion transmission under varying conditions.
  • Durable Construction: Stainless steel inner core with abrasion-resistant jacket for long lifespan.
  • Weatherproof: Resistant to corrosion, moisture, and extreme temperatures.
  • Low Friction: Inner liner minimizes resistance for easier gear shifting.
  • Customizable Design: Available in various lengths, end fittings, and materials.
Installation And Maintenance
  • Always check and ensure the routing of the original cable and its dimensions to be identical to the new cable before installing.
  • Lubricate the cables with some light oil prior to installation.
  • When routing cables, make sure that there's enough gap between the cable and any heat source to allow the cables to move.
  • Once installed, check the cable's operation from steering lock to lock to make sure it works both ways (Push/Pull).
  • For maintenance, cables should be removed and flushed with a blast of air to prolong cable's life. However, replacing the cables at regular intervals should always still be the best option.
End Parts Of Fittings
Our accessory items available include clevis assemblies, pivots, ball joints, terminal eye fittings, shims, clamps, u-bolt assemblies and mounting brackets etc.

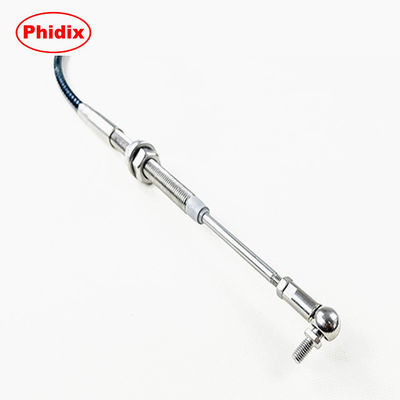

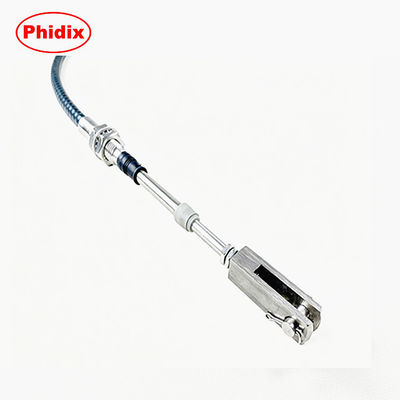

Product Image
High Performance Gear Shift Control Cable Assembly with Carbon Steel / Stainless Steel Inner Cable and Up To 1500N Operating Load 0
Our Services
If you are interested in our products, please tell us which model and quality you want to order. A performa invoice will be made for your order. We will deliver the product ASAP when we receive your payment.
Please contact us without hesitation, we are pleased to welcome to you!
PHIDIX MOTION CONTROLS(SHANGHAI) CO.,LTD
Add: Building #21, Block 9299, Tingwei Road, Jinshan District, Shanghai 201505
Tel: (86-21)37214606/ 07/ 08/ 09
Fax: (86-21)37214610
MP: 13816744282
WhatsApp: +86 159 0069 3782
Website: www.mechanical-controlcable.com
E-mail: lisa.tu@phidixglobal.com
